Spectacular image quality, low maintenance and ultimate reliability

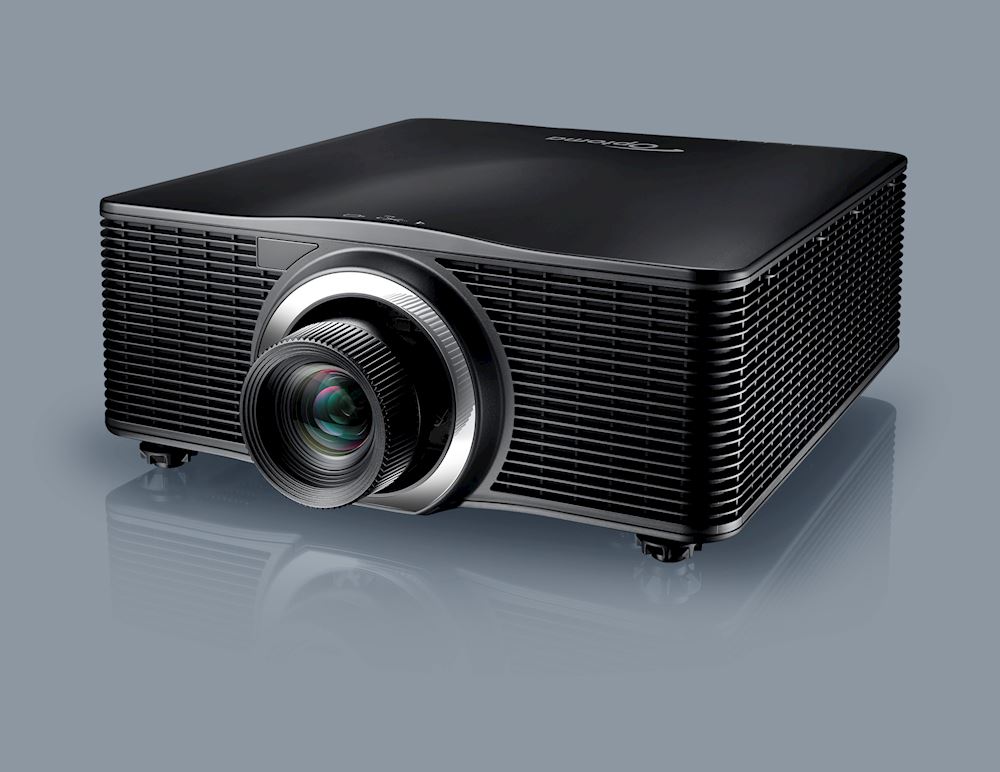

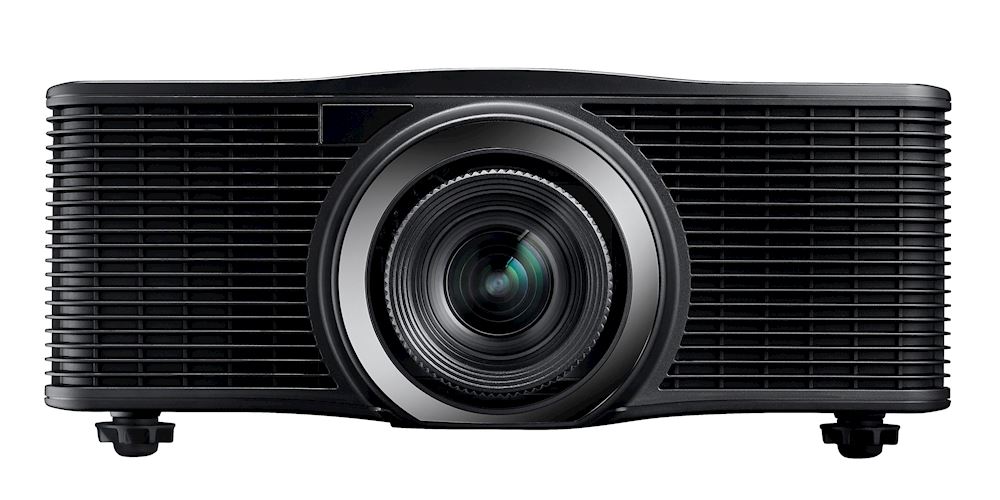

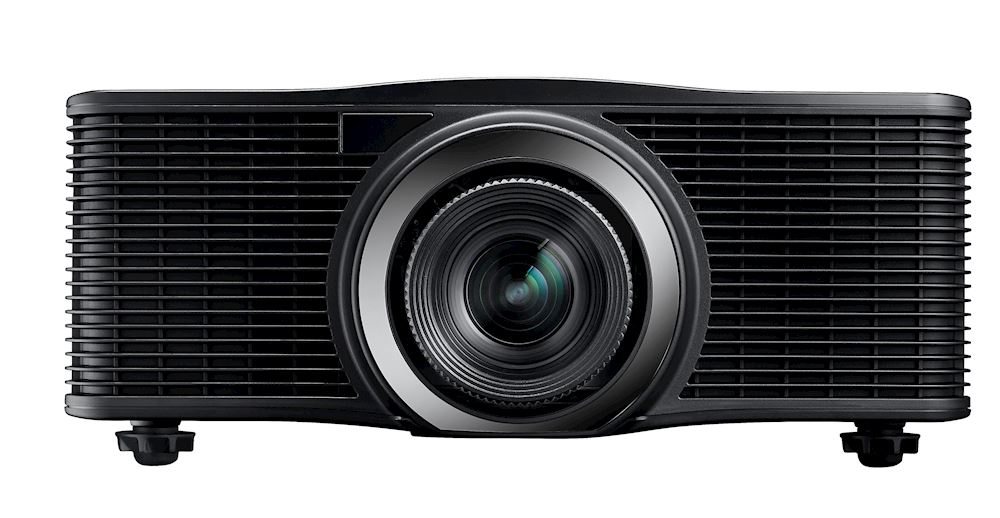

The ZU860 combines superior colour with exceptional brightness consistency. The innovative laser technology delivers ultimate colour performance whilst the DuraCore laser light source maintains exceptional brightness consistency.

Delivering up to an astonishing 30,000 hours, this projector achieves superior colour rendition.

Designed for even the most complex professional installations, the ZU860 offers seven interchangeable lens options including an ultra short throw lens and single-projector dome lens for ultimate flexibility.

Features

Bright 9600 lumen laser WUXGA DLP projector

Up to 30,000 hours maintenance-free laser light source

Dust resistant – independently tested, IP5X certified for total reliability

Installation flexibility – 7x lens options including ultra short throw and dome lens

DuraCore

Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

Integrated warping and edge blending processor

Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.

*Compatible multi output graphics card with overlap function is required.

HDR compatible

Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.

HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

Amazing colour

Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.

Colour Management System (CMS)

Display accurate lifelike colours to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the colour settings of your projector for optimal precision.

Brightness matching

A valuable feature of any professional installation incorporating more than one projector. Multiple units of the same model and similar lamp usage can be fine tuned to give the same brightness levels; important, especially when side by side.

Constant power

Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere inbetween

Constant brightness

Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuruing constant brightness for fine tune installations

True AV mute

True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.

Extreme Black

Extreme black enables the laser diodes to completly turn off when a full black image frame is detected. This feature is perfect for situations where a total image blackout is required.

Full lens shift

Full lens shift makes installation simple and hassle free, offering the flexibility to move the projected image vertically or horizontally, as well as adjusting the screen size without the need to move or reposition the projector.

Picture by picture picture-in-picture

Signals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications.

360 projection*

With 360° projection,* images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

*For more information please refer to the user manual

Portrait projection

Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.

Customise your projector

Have your projector in any colour. Choose from any RAL colour. Perfect for bespoke installations.
*Contact us for more information

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

Wired remote

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

Control

Featuring a wide range of options you can control and monitor the projector remotely.

• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

• Extron IPLink compatible
Allows for easy installation with Extron control systems

PJLink

PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

Telnet

This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

DuraCare Warranty

Optoma’s additional DuraCare warranty package offers a warranty designed for very high duty operation. It ensures higher average brightness and exceptional reliability over an extended period of up to 5 years or 24,000 hours. This additional package has the added benefit of a preventative maintenance service at 12,000 hours which will return the performance back to the day it was manufactured.

12,000 hour re-manufacture service:

Replacement of laser light source
Replacement of critical components and moving parts
Internal inspection and cleaning

For more information and terms and conditions please click here

IP5X Dust resistant optical engine

Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
